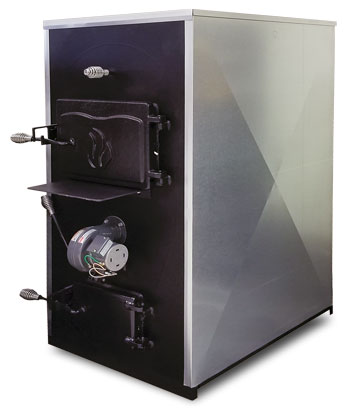

Royall 8130 Indoor Wood Furnace


8130 Indoor Wood Furnace - 130,000 btu

Our premium residential indoor wood furnace will heat homes under 3,000 sq feet in area with even, whole house comfort. Reliability that can keep you warm and comfortable no matter how cold it gets. The furnace systems connects easily to any existing conventional air heating system you may already have in place, or as a supplement to an existing heating system.

Residential Furnace Solutions

Wood Furnace Specifications:

• 48" x 24.5" x 42" (HxWxD)
• 41.25" Flue Center To Ground
• 10 and 12 ga Steel Construction
• Quality Powder Coated Finish
• (4) Rocker Grate System
• 50 cfm Forced Draft Fan
• 7.4 Cu ft Firebox Capacity

• 10" x 14" Fuel Door
• 5" x 7" Ash Removal Door
• Full Firebrick lining
• 8" Collar, 6" Flue
• 565 lbs (approximate)
• Rated for UL391


8130 Wood Furnace Specification Information Sheet
The 8130 Wood Furnace Specification Sheet

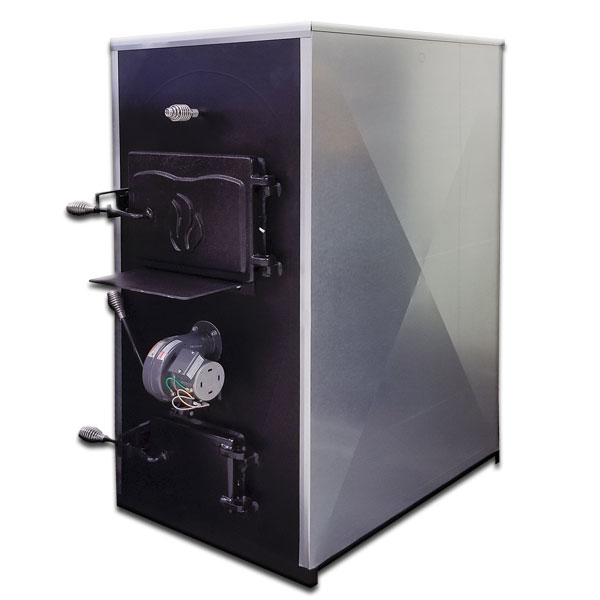

Royall 8130 Wood Furnace
Royall 8130 Wood Furnace

8130 Furnace Flue and Circulation Fan Outlet
8130 Furnace Flue and Circulation Fan Outlet

8130 Furnace 4 Rocker Grate System
8130 Furnace 4 Rocker Grate System

8130 Furnace Draft Inducer, Shaker, and Ash Door
8130 Furnace Draft Inducer, Shaker, and Ash Door

8130 Wood Furnace 10"x14" Fuel Door
8130 Wood Furnace 10"x14" Fuel Door

8130 Wood Furnace Damper Assembly
8130 Wood Furnace Damper Assembly


8095 - 95,000 btu Wood Furnace

8095 Wood Furnace


8150 - 150,000 btu Wood Furnace

8150 Wood Furnace



Furnace Warranty
