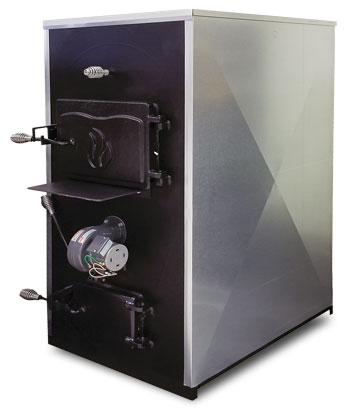

Royall 8150 Indoor Wood Furnace


8150 Indoor Wood Furnace - 150,000 btu

Our best residential indoor wood furnace will heat homes under 3,500 sq feet with even, complete house comfort. Reliability that can keep your house warm and comfortable no matter how cold it may get. This wood furnace systems connects easily to any existing conventional air heating system that you may already have in place, or used as a supplement to an existing heating system.

Residential Furnace Solutions

Wood Furnace Specifications:

• 48" x 24.5" x 42" (HxWxD)
• 41.25" Flue Center To Ground
• 10 and 12 ga Steel Construction
• Quality Powder Coated Finish
• (4) Rocker Grate System
• 50 cfm Forced Draft Fan
• 7.4 Cu ft Firebox Capacity

• 10" x 14" Fuel Door
• 5" x 7" Ash Removal Door
• Full Firebrick lining
• 8" Collar, 6" Flue
• 595 lbs (approximate)

• Rated for UL391


8150 Wood Furnace Specification Information Sheet
The 8150 Wood Furnace Specification Sheet

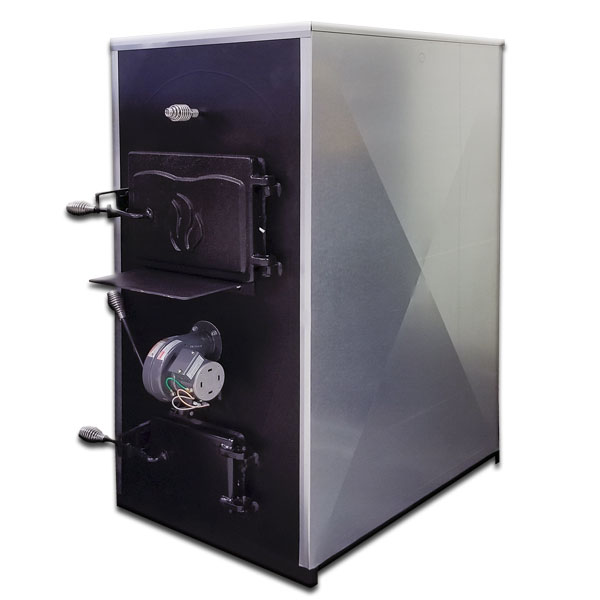

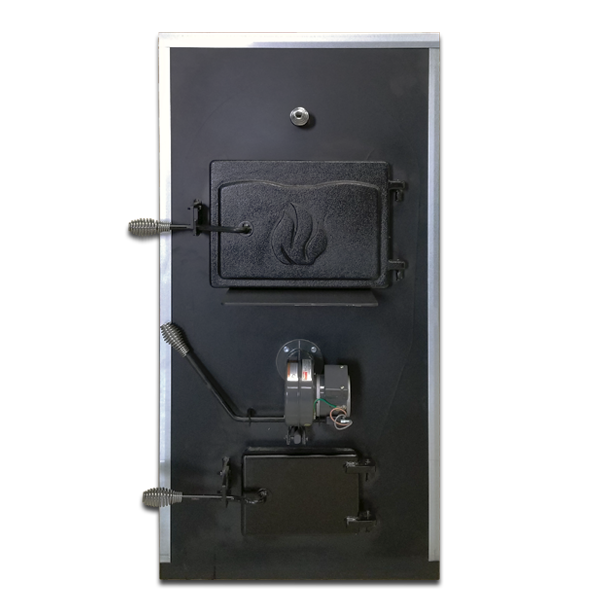

Royall 8150 Wood Furnace
Royall 8150 Wood Furnace

8150 Furnace Flue and Circulation Fan Outlet
8150 Furnace Flue and Circulation Fan Outlet

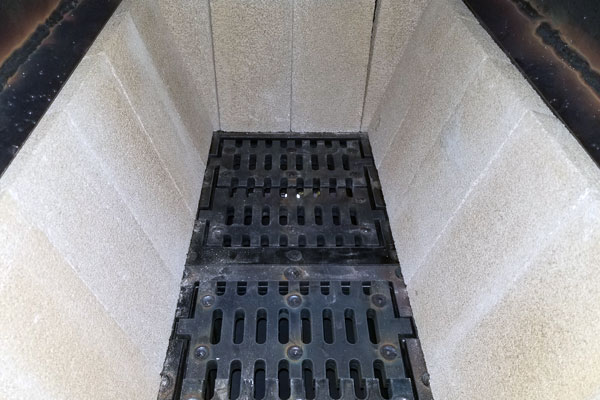

8150 Furnace 4 Rocker Grate System
8150 Furnace 4 Rocker Grate System

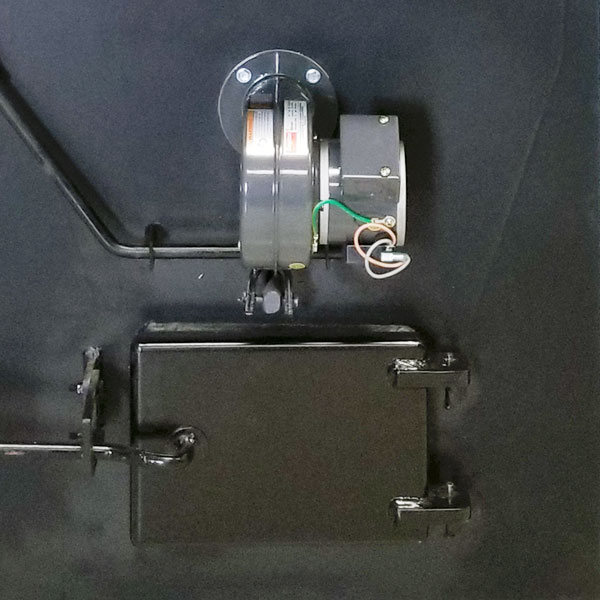

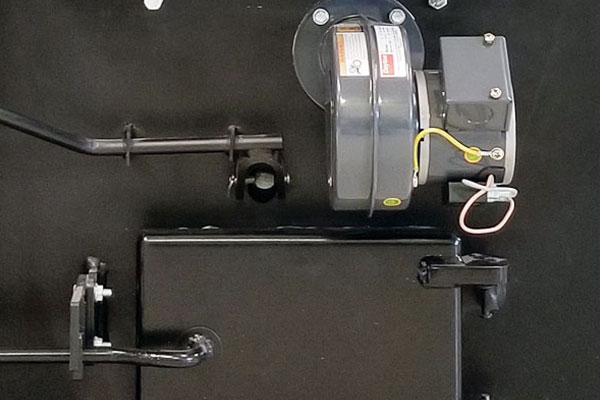

8150 Furnace Draft Inducer, Shaker, and Ash Door
8150 Furnace Draft Inducer, Shaker, and Ash Door

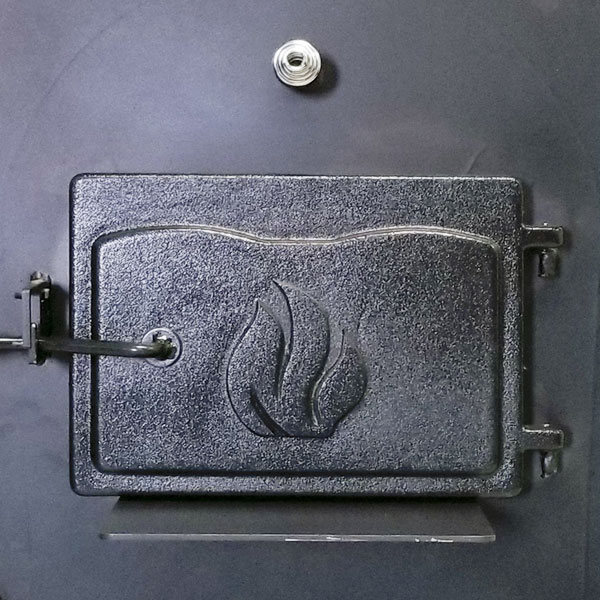

8150 Wood Furnace 10"x14" Fuel Door
8150 Wood Furnace 10"x14" Fuel Door

8150 Wood Furnace Damper Assembly
8150 Wood Furnace Damper Assembly
